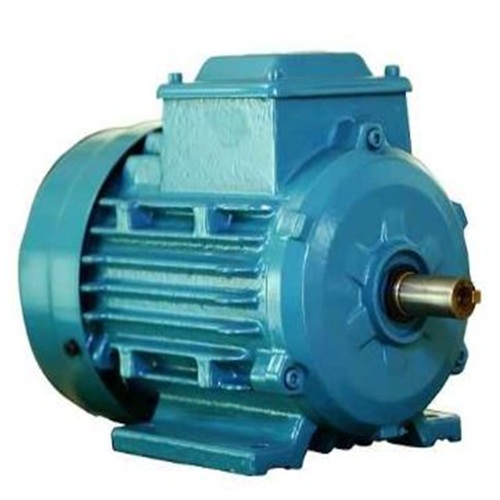

ABB Motor M2BAX160MLB8 IE2
ABB Motor M2BAX160MLB8 IE2 Specification
- Motor Type
- Squirrel Cage Induction Motor
- Poles Number
- 8 Poles
- Noise Level
- Less than 78 dB(A)
- Sealed Type
- IP55 Enclosure
- Rated Voltage
- 400/690 V
- Standard
- IEC 60034-30, IS 12615
- Power Rating
- 15 kW
- Starting Type
- Direct On Line (DOL)
- Ambient Temperature
- -20C to +40C
- Efficacy
- IE2 Efficiency Class
- Cooling Method
- IC411 (Self-ventilated TEFC)
- Current Type
- AC
- Rated Frequency
- 50 Hz
- Voltage
- 400 V
- Horse Power
- 20 HP
- Torque
- Approx. 195 Nm
- Pressure
- Standard Atmospheric
- Bearing Type
- Deep Groove Ball Bearing
- Features
- High efficiency, Rugged construction, Low maintenance
- Product Type
- Low Voltage Three Phase AC Motor
- Output Power
- 15 kW
- Frequency (MHz)
- 50 Hz
- Protect Feature
- Totally Enclosed Fan Cooled (TEFC)
- Phase
- Three Phase
- Speed
- 735 rpm
- Power
- 15 kW
- Color
- Blue
- Dimension (L*W*H)
- Approx. 650 x 370 x 470 mm
- Weight
- 122 kg
- Shaft Diameter
- 42 mm
- Mounting Type
- B3 Foot Mounted
- IP Rating
- IP55
- Lubrication
- Regreasable bearings
- Material
- Cast Iron Frame
- Applications
- Pumps, Fans, Compressors, Conveyors, Industrial Machinery
- Thermal Protection
- PTC Thermistor (on request)
- Altitude
- Up to 1000 m above sea level
- Frame Size
- 160M
- Insulation Class
- F
- Connection Type
- Star/Delta
- Service Factor
- 1.0
- Rotation Direction
- Bi-directional
ABB Motor M2BAX160MLB8 IE2 Trade Information
- Minimum Order Quantity
- 1 Unit
- Delivery Time
- 2 Week
About ABB Motor M2BAX160MLB8 IE2
Unlock soaring efficiency and rugged reliability with the ABB Motor M2BAX160MLB8 IE2, now on Sale. This acclaimed, 15 kW, 8-pole Squirrel Cage Induction Motor delivers unparalleled performance for pumps, fans, compressors, conveyors, and industrial machinery. Crafted with a robust cast iron frame and regreasable bearings, it is bi-directional for versatile applications. Engineered for wondrous results, it supports Direct On Line starting, enjoys IE2 efficiency, and meets IEC 60034-30 and IS 12615 standards. Buy Online from leading exporters, suppliers, and traders in India for assured quality.
Material and Special Features of ABB Motor M2BAX160MLB8 IE2
The ABB Motor M2BAX160MLB8 IE2 features a cast iron frame, promising durability and steadfast operation in tough environments. Its deep groove ball bearings, regreasable design, and optional PTC thermistor ensure extra longevity and safety. With IP55 enclosure, it is resistant to dust and water, while the IC411 cooling method keeps the motor temperature controlled. Designed for ambient temperatures of -20C to +40C, this model excels in reliability, efficiency, and low-maintenance operation, making it ideal for demanding industrial use.
Sample Policy, Payment, and Packaging for ABB Motor M2BAX160MLB8 IE2
For the ABB Motor M2BAX160MLB8 IE2, sample dispatching is available upon request, enabling you to evaluate quality before a larger supply. Payment terms are typically advance against order confirmation, ensuring secure transactions with every drop-off. Packaging details focus on robust and secure handling, with motors dispatched in sturdy, protective packaging for safe arrival at your location. Our streamlined dispatching and supply chain ensures reliable delivery for all orders across India, supporting smooth and timely procurement.
Material and Special Features of ABB Motor M2BAX160MLB8 IE2
The ABB Motor M2BAX160MLB8 IE2 features a cast iron frame, promising durability and steadfast operation in tough environments. Its deep groove ball bearings, regreasable design, and optional PTC thermistor ensure extra longevity and safety. With IP55 enclosure, it is resistant to dust and water, while the IC411 cooling method keeps the motor temperature controlled. Designed for ambient temperatures of -20C to +40C, this model excels in reliability, efficiency, and low-maintenance operation, making it ideal for demanding industrial use.
Sample Policy, Payment, and Packaging for ABB Motor M2BAX160MLB8 IE2
For the ABB Motor M2BAX160MLB8 IE2, sample dispatching is available upon request, enabling you to evaluate quality before a larger supply. Payment terms are typically advance against order confirmation, ensuring secure transactions with every drop-off. Packaging details focus on robust and secure handling, with motors dispatched in sturdy, protective packaging for safe arrival at your location. Our streamlined dispatching and supply chain ensures reliable delivery for all orders across India, supporting smooth and timely procurement.
Efficiency Class |
IE2 |
Insulation Class |
F Class |
Ambient Temperature |
50 Deg C |
Mounting Type |
Foot Mounted |
Rated Voltage |
415 V |
Frequency |
50 Hz |
Phase |
Three Phase |
Speed |
750 RPM |
Type of Product |
Squirrel Cage Induction Motor |
Pole |
8 |
Output Power (kW) |
5.5 kW |
Power |
7.5 HP |
Model No |
M2BAX160MLB8 IE2 |
Frame Size |
M2BAX160MLB8 IE2 |
Body Material |
Cast Iron |
Certification |
IEC:60034-1 & IS 12615:2018 |
Enclosure |
Totally Enclosed Fan Cooled (TEFC) |
Torque |
73 Nm |
Locked Rotor Torque |
1.5 Nm |
Breakdown Torque |
2.3 Nm |
Starting Current |
5 A |
Weight |
127 Kg |
Efficiency (%) |
Full Load 100 83.8, 3/4 Load 75 83.8 & 1/2 Load 50 82.8 |
Current |
13.8 A |
Power Factor |
0.66 |
Moment of Inertia |
0.094 Kgm |
Protection |
IP55 |
Winding |
Copper |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
ABB India Limited |
FAQ's of ABB Motor M2BAX160MLB8 IE2:
Q: How can I use the ABB Motor M2BAX160MLB8 IE2 in my industrial setup?
A: The ABB M2BAX160MLB8 IE2 is engineered for seamless integration with pumps, fans, compressors, conveyors, and a variety of industrial machinery. With its bi-directional rotation and Direct On Line (DOL) starting, installation is straightforward for both new and replacement applications.Q: What are the main material and protection features of this motor?
A: This motor is constructed with a robust cast iron frame for enhanced durability and is enclosed in an IP55-rated housing, giving it exceptional protection against dust and water ingress-making it ideal for demanding environments.Q: How does the sample policy and dispatch process work for this motor?
A: Sample drop-off or dispatching can be arranged upon request. Once your order is confirmed and payment is processed, our supply team ensures careful packaging and timely dispatch of the motor to your designated location.Q: When is thermal protection provided in this ABB motor?
A: Thermal protection with a PTC thermistor is available on request, offering additional safety and preventing overheating in critical industrial operations.Q: Where is this ABB motor manufactured and to which standards does it conform?
A: The ABB M2BAX160MLB8 IE2 is manufactured in India and conforms to the international IEC 60034-30 and IS 12615 standards, ensuring global quality and reliability.Q: What benefits does the IE2 efficiency class offer for my operations?
A: IE2 efficiency ensures optimal energy usage, reducing running costs and supporting sustainable, cost-effective industrial operations over the long term.Price 80000.0 INR/ Unit
- Minimum Order Quantity
- 1 Unit
- Delivery Time
- 2 Week
Get Latest PriceTell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Motor Category
Lubi Motor LMT Series
Price 30000.0 INR / Piece
Minimum Order Quantity : 1 Unit
Speed : 2880 RPM / 1440 RPM / 960 RPM / 720 RPM
IP Rating : Other, IP55
Power : 0.25 HP to 100 HP
Starting Type : Direct On Line (DOL)
Lubi Motor MMS Series
Price 30000.0 INR / Piece
Minimum Order Quantity : 1 Unit
Speed : 1440/2880 RPM
IP Rating : Other, IP55
Power : Varies by model
Starting Type : Capacitor Start & Run (for Single Phase)

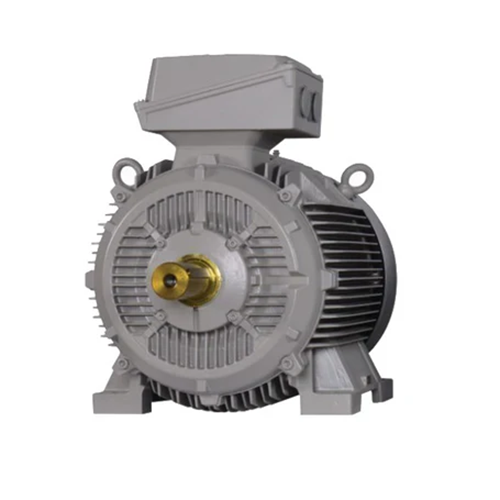

Siemens 1LE75032BA235AA4
