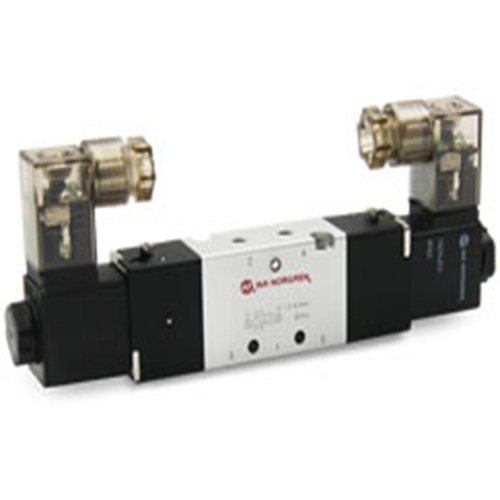

IMI Norgren VCB22B511A-AB213J

IMI Norgren VCB22B511A-AB213J Specification

Structure
Solenoid Valve

Caliber
22 mm

Pressure
2 to 10 Bar

Connection
Threaded

Channels
5/2 Way

Material
Aluminium Die Cast

Power
230V AC

Media
Air

Temperature of Media
-10C to +50C

Port Size
1/2 inch BSP

Flange
No Flange

Finish
Anodized

Application
Industrial Automation

Mounting Type
Base Mounted

Enclosure Protection
IP65 (with plug)

Manual Override
Yes

Model Number
VCB22B511A-AB213J

Response Time
Less than 50 ms

Coil Insulation Class
Class F

IMI Norgren VCB22B511A-AB213J Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Week

About IMI Norgren VCB22B511A-AB213J

Medium	Compressed air
Operating Temperature	-5 ... 70 C, 23 ... 158 F
Operating Pressure	1.5 ... 8 bar, 22 ... 116 psi
Port Size	G1/4
Actuation	Solenoid pilot / Solenoid pilot
Valve operation	5/2
Flow	1050 l/m
Certification - IP Rating	IP65
Country of Origin	China
Range	VCB22
Series	Norgren Guardian
Brand	IMI Norgren

Engineered for Industrial Automation

The IMI Norgren VCB22B511A-AB213J solenoid valve exemplifies high performance in industrial environments. Its 5/2 way channel structure and class-leading rapid response make it ideal for controlling pneumatic actuators. Manufactured with a corrosion-resistant, anodized aluminium body, this valve is compatible with a wide range of air-powered automation setups, ensuring longevity and reliability.

User-Centric Design and Safety

This solenoid valve incorporates essential features such as a manual override and Class F coil insulation, providing added flexibility and safety for operators. The IP65 enclosure protection (with plug) safeguards the internal components from dust and water ingress, supporting uninterrupted operations-even in demanding industrial settings.

Flexible Installation and Maintenance

Installation is uncomplicated due to the base-mounted configuration and threaded port connections (1/2 inch BSP). The device can be easily integrated into automation systems, while its minimal maintenance requirements and resilient construction minimize downtime and operational costs.

FAQ's of IMI Norgren VCB22B511A-AB213J:

Q: How should the IMI Norgren VCB22B511A-AB213J solenoid valve be installed?

A: The valve is best installed using its base-mounted configuration and threaded 1/2 inch BSP ports. Ensure the mounting surface is stable and all air connections are securely tightened for optimal operation.

Q: What are the recommended usage scenarios for this solenoid valve?

A: Its design is tailored for industrial automation where precise and rapid control of air media is required, such as in pneumatic actuation, manufacturing lines, and automated machinery.

Q: When is it beneficial to use the manual override feature?

A: The manual override is valuable during maintenance or emergency situations, allowing operators to manually operate the valve without electrical power to the coil.

Q: Where can this valve operate effectively considering environmental conditions?

A: Thanks to its IP65 rating (with plug) and anodized aluminium body, the valve can perform reliably in environments exposed to dust, moisture, and varying temperatures between -10C and +50C.

Q: What is the process for routine maintenance of this valve?

A: Routine maintenance involves periodically checking for air leaks, ensuring electrical connections are intact, and keeping the enclosure clean. Its durable construction minimizes frequent servicing needs.

Q: What benefits does the fast response time provide for industrial users?

A: A response time of less than 50 milliseconds enhances system efficiency by ensuring prompt actuation, thereby supporting high-speed automation and reducing delays in process cycles.
