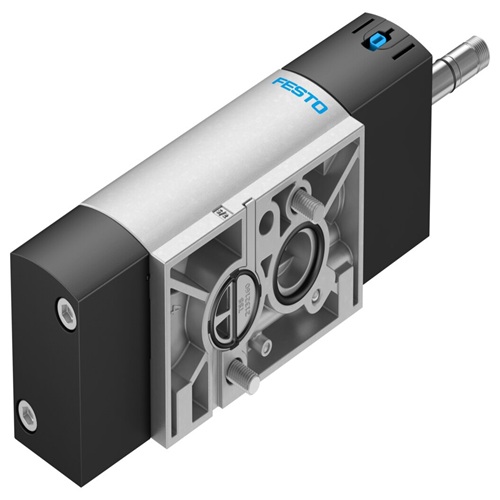

Festo VSNC-FTC-M52-MD-G14-FN-1A1

Festo VSNC-FTC-M52-MD-G14-FN-1A1 Specification

Pressure
2 to 8 bar

Caliber
5/2 way

Channels
5

Structure
Solenoid Valve, Spool Type

Connection
Electrical (via solenoid) and pneumatic ports G1/4

Material
Aluminium body, NBR seals

Power
24V DC

Media
Compressed air, filtered, lubricated or non-lubricated

Temperature of Media
-5C to +50C

Port Size
G1/4

Flange
Panel mounting possible with accessories

Finish
Anodized

Application
Pneumatic automation, cylinder control

Manual Override
Yes, detenting

Standards/Certification
CE, RoHS

Coil Power Consumption
1.7 W

Actuation Type
Electrical, Single solenoid

Operating Voltage
24V DC (Other variants available)

Flow Rate
1100 l/min

Response Time
23 ms

Mounting Position
Any

Electrical Connection
Plug, M12x1, 4-pin

Weight
Approx. 430 g

Valve Function
5/2, monostable

Protection Class
IP65

Festo VSNC-FTC-M52-MD-G14-FN-1A1 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
2 Week

About Festo VSNC-FTC-M52-MD-G14-FN-1A1

Technical Data

Valve function5/2-way or 3/2-way, convertible
Type of actuationElectric
Construction width32 mm
Standard nominal flow rate (standardised to DIN 1343)800 l/min
pneumatic working portNAMUR port pattern
Operating voltage24V DC
Operating pressure0.25 MPa ... 0.8 MPa
Operating pressure2.5 bar ... 8 bar
DesignPoppet seat
Type of resetMechanical spring
Certificate issuing authorityDNVGL-TAA000011J
Degree of protectionIP65 IP67 With plug socket To IEC 60529
Exhaust-air functionWith flow control option
Sealing principleSoft
Mounting positionoptional
Conforms to standardVDI/VDE 3845 (NAMUR)
Manual overrideDetenting Non-detenting
Type of pilotingPilot actuated
Pilot air supplyInternal
Flow directionNon-reversible
Symbol00991831
lapUnderlap
Signal status displayWith accessories
b value0.15
C value3.96 l/sbar
Standard nominal flow rate, exhaust return 4->3110 l/min
Switching time off120 ms
Switching time on16 ms
Duty cycle100%
Characteristic coil data24 V DC: 0.7 W
Permissible voltage fluctuations+/- 10 %
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Media temperature-20 C ... 60 C
Ambient temperature-20 C ... 60 C
Product weight495 g
Electrical connectionType A To EN 175301-803
Type of mountingWith through-hole
Breather connectionNot ducted
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2NAMUR port pattern
Pneumatic connection, port 3G1/4
Pneumatic connection, port 4NAMUR port pattern
Pneumatic connection, port 5G1/4
Note on materialsRoHS-compliant
Material sealsNBR
Material housingWrought aluminium alloy
Material screwsGalvanised steel

High-Performance Automation Control

With its 1100 l/min flow rate and 23 ms response time, the VSNC-FTC-M52-MD-G14-FN-1A1 is engineered for fast and efficient pneumatic control. Its single solenoid actuation and 5/2-way configuration make it ideal for controlling double-acting cylinders in automated systems, supporting precise and repeatable operation every cycle.

Reliable Build for Harsh Environments

Built from anodized aluminium and equipped with NBR seals, this valve withstands challenging industrial conditions. The IP65 protection class prevents ingress of dust and water jets, while its CE and RoHS certifications underscore its safety and environmental compliance. The valve functions reliably within a wide media temperature range from -5C to +50C.

Flexible Installation and Maintenance

The VSNC-FTC-M52-MD-G14-FN-1A1 accommodates various mounting positions and offers panel mounting with accessories. The detenting manual override enables easy intervention during setup or maintenance, while the M12x1, 4-pin plug connection supports quick electrical integration into automation panels or retrofitting into existing systems.

FAQ's of Festo VSNC-FTC-M52-MD-G14-FN-1A1:

Q: How is the Festo VSNC-FTC-M52-MD-G14-FN-1A1 typically used in industrial applications?

A: This solenoid valve is primarily used for controlling pneumatic cylinders and actuators in automated systems. Its 5/2-way spool type design allows for precise management of compressed air flow, making it ideal for tasks like cylinder control in manufacturing lines, robotics, or packaging machinery.

Q: What benefits does the anodized aluminium body provide for this valve?

A: The anodized aluminium body ensures durability, corrosion resistance, and lighter weight, making the valve suitable for long-term operation in demanding environments. This construction also supports better heat dissipation and contributes to the overall reliability and lifespan of the valve.

Q: When should the manual override function be used?

A: The manual override, which features a detenting mechanism, should be used during setup, maintenance, or in the event of electrical system faults. It allows operators to manually actuate the valve for troubleshooting or testing, ensuring operational flexibility and quick recovery during service interruptions.

Q: Where can the Festo VSNC-FTC-M52-MD-G14-FN-1A1 be installed within a pneumatic automation setup?

A: This valve is designed for universal mounting positions and can be incorporated into a variety of settings. It can be mounted directly on machinery or on control panels using optional panel-mounting accessories, allowing flexible integration into new or existing pneumatic systems.

Q: What is the process for electrically connecting this valve?

A: The valve utilizes a convenient M12x1, 4-pin plug connection for electrical integration. Simply connect the appropriately wired plug to the valve's socket. The 24V DC power supply (other variants available) should be secured as per circuit design, ensuring proper polarity and connection integrity.

Q: Which types of media can be used with this solenoid valve?

A: The valve is suitable for compressed air that is either lubricated or non-lubricated and must be filtered to maintain efficient operation and longevity. It operates effectively within a temperature range of -5C to +50C, extending its usability in various ambient conditions.

Q: What certifications does the Festo VSNC-FTC-M52-MD-G14-FN-1A1 meet, and why are they important?

A: This valve is CE and RoHS certified, demonstrating compliance with international safety, quality, and environmental standards. These certifications ensure the product is safe for use, environmentally friendly, and compatible with export regulations, especially for industrial automation applications in India and worldwide.
