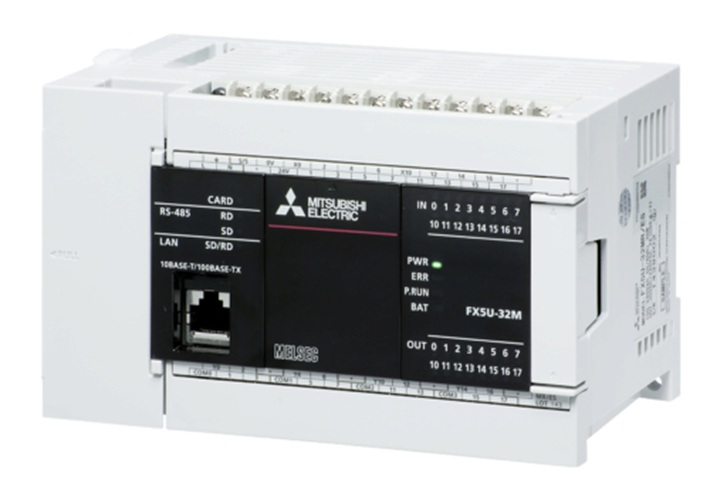

Mitsubishi FX5U-32MR/ES

Mitsubishi FX5U-32MR/ES Specification

Panel Type
Modular

Rated Insulation Voltage
500V AC for 1 min

Current Rating
0.5A (input), 2A (output)

Operating Voltage
100-240V AC

Way
Input and Output

Protection Class
Class I

Connectivity Type
Ethernet, RS-485

Protection Level
IP20

Cabinet Material
Plastic

Components
Main CPU, I/O terminals

Base Material
High-grade Plastic

Thickness
Standard

Cooling System
Natural Air Cooling

Cover Material
ABS Plastic

Control System
Microcontroller-Based

Rated Current
5A

Rated Operation Voltage
100-240V AC

Features
High-Speed Processing, Built-in Ethernet Port, Expandable I/O, Maintenance-Free Memory

Product Type
Programmable Logic Controller (PLC)

Material
Plastic and Metal

Surface Finish
Matte

Standard
CE, UL, cUL

Surface Color
Grey

Rated Voltage
24V DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
2A (per output point)

Dimension (L*W*H)
150mm x 90mm x 86mm

Application
Industrial Automation

IP Rating
IP20

Display Type
LED Indicators

Number of Inputs
16 (Source/ Sink Type)

Number of Outputs
16 (Relay Type)

Operating Temperature
0C to 55C

Response Time
<0.2 ms

Relative Humidity
5% to 95% (non-condensing)

Storage Temperature
-25C to 75C

Programming Language
GX Works3 (Ladder, SFC, FBD, ST, IL)

Mounting Type
DIN Rail/Panel Mount

Weight
Approx. 0.65 kg

Expansion Capability
Supports FX5 Expansion Modules

Power Supply
Built-in Power Supply Unit

Environmental Compliance
RoHS Compliant

Memory Capacity
64k Steps (Program Memory)

Mitsubishi FX5U-32MR/ES Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
2 Week

Mitsubishi FX5U-32MR/ES About

FX5U;CPU;AC;16 Inputs;16 Relay Outputs;3xAnalog;Eth;RS-485

FA-COM PLC: Main Unit

Type	FX5U
Power Supply (V)	100-240
Current Type	AC
Program Memory	64K STEPS
Program Memory Unit	FLASH
Integrated Digital Inputs	16
Integrated Digital Outputs	16
Integrated Analogue Inputs	2
Output Type	RELAY
Local I/O Points	256
Local + Remote I/O Points	512
Expandable	YES
Cycle Time LD (ns)	34
Cycle Time MOV (ns)	34
Ethernet Port	1
RS-485	1
Power Consumption (W)	30
Buffer Battery	OPTION
Protection Class	IP10
Min. Ambient Temperature (C)	-20
Max. Ambient Temperature (C)	55
Series	MELSEC IQ-F SERIES

Conformity

CE	COMPLIANT
UL/cUL	COMPLIANT
EAC	NON-COMPLIANT
Shipping Approvals	ABS,BV,DNV GL,KR,LR,NK,RINA
UKCA	COMPLIANT

Product Dimensions & Weight

Width (mm)	150
Height (mm)	90
Depth (mm)	83
Weight (kg)	0,65

Life Cycle

Serial No. on the Box	QR1

Campaigns

Selling Status	Standard

Product Packaging

Cardboard (g)	100
Other paper (g)	23,4
Aluminum (g)	0
Steel (g)	0
Styrofoam (g)	0
Other plastic (g)	0
Wood (g)	0
Glass (g)	0
Others (g)	0

Advanced Automation for Industrial Applications

The FX5U-32MR/ES PLC is engineered for demanding automation needs in manufacturing and process industries. With 16 inputs and 16 relay outputs, built-in power supply, and high-speed response times, it ensures efficient and precise control. Its modular construction supports easy expansion, making it a scalable choice for evolving requirements. CE, UL, and RoHS certifications guarantee wide industry acceptance and adherence to safety standards.

Flexible Programming and Connectivity

Supporting GX Works3, the FX5U-32MR/ES allows programming using ladder, SFC, FBD, ST, and IL languages. Integrated Ethernet and RS-485 ports enable seamless communication with existing systems, improving integration possibilities. Maintenance-free memory ensures reliable operation, while built-in LED indicators provide at-a-glance status updates for diagnostics and monitoring.

Rugged, User-Friendly Design

Constructed from high-grade plastic and metal, the FX5U-32MR/ES is built to endure industrial environments with protection level IP20 and an operating range from 0C to 55C. Its small form factor and modular panel type make installation fast and straightforward on either DIN rail or panel surfaces. The matte-finished surface and ABS cover further enhance durability and usability.

FAQ's of Mitsubishi FX5U-32MR/ES:

Q: How do I program the Mitsubishi FX5U-32MR/ES PLC?

A: You can program the FX5U-32MR/ES using Mitsubishi's GX Works3 software, which supports ladder diagram, SFC, FBD, structured text, and instruction list languages for flexibility and ease of use.

Q: What are the benefits of using the built-in Ethernet and RS-485 ports?

A: The built-in Ethernet and RS-485 ports enable seamless connectivity to other automation devices and networks, enhancing data exchange, remote monitoring, and integration with supervisory control systems.

Q: Where can I install the FX5U-32MR/ES PLC?

A: This PLC can be mounted on a DIN rail or directly on a panel, making it suitable for a variety of industrial control cabinets and automated machinery setups.

Q: What is the process for expanding the I/O capabilities of this PLC?

A: To expand I/O, simply connect FX5 series expansion modules to the main unit. The modular design allows quick and tool-free installation, supporting system scalability as your application grows.

Q: When should I consider using this PLC in my industrial setup?

A: The FX5U-32MR/ES is ideal when you require high-speed, reliable control for complex automation tasks and need support for multiple I/O points, networking, and future-proof expansion.

Q: What is the operating environment for the FX5U-32MR/ES?

A: The PLC operates reliably in environments with temperatures between 0C and 55C and relative humidity from 5% to 95% (non-condensing), with IP20 protection against solid objects.

Q: How does the FX5U-32MR/ES ensure safety and compliance?

A: This controller meets CE, UL, and RoHS standards for industrial safety and environmental compliance, assuring quality and adherence to regulatory requirements worldwide.
