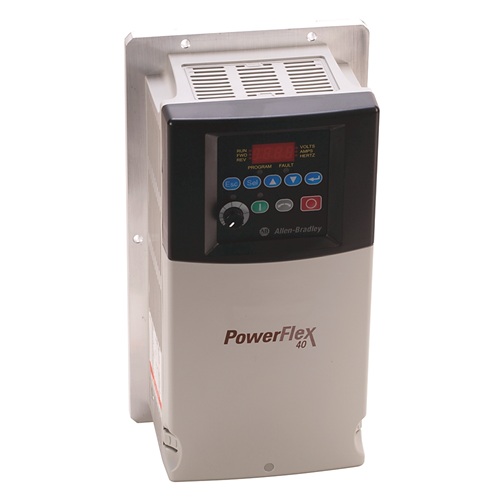

Allen-Bradley 22B-E012H204

Allen-Bradley 22B-E012H204 Specification

Cooling System
Internal Fan Cooling

Components
Integrated Keypad, IGBT Power Module

Cover Material
Plastic

Features
Built-in EMC filter, Adjustable Acceleration/Deceleration, Fault Diagnostics

Thickness
Standard Drive Enclosure

Protection Class
Class I

Rated Current
12A

Rated Operation Voltage
460V AC

Connectivity Type
RS485 (DF1), Optional Communication Modules

Base Material
Plastic/Metal

Cabinet Material
Plastic/Metal

Current Rating
12A

Control System
V/Hz, Sensorless Vector Control

Way
3-Phase

Panel Type
Enclosed Drive

Operating Voltage
380-480V AC

Protection Level
IP20, NEMA / UL Open Type

Product Type
PowerFlex 40 AC Drive

Material
Plastic/Metal Composite

Surface Finish
Matte

Standard
IEC/UL/cUL

Surface Color
Gray/Black

Rated Voltage
480V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
12A

Dimension (L*W*H)
130 mm x 130 mm x 170 mm

Application
Motor Control, Variable Frequency Drive Applications

IP Rating
IP20

Display Type
LED

Output Frequency Range
0 - 400 Hz

Braking Unit
Built-in

Number of Digital Outputs
2 (1 Relay, 1 Transistor)

Mounting Type
Panel Mount

Number of Analog Outputs
1

Programming Method
Keypad, RS485, Remote

Control Method
V/f, Sensorless Vector

Ambient Operating Temperature
-10C to 50C

Horsepower Range
Up to 5 HP

Overload Capability
150% for 1 minute

Number of Analog Inputs
2

Number of Digital Inputs
5

Allen-Bradley 22B-E012H204 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
3 Week

About Allen-Bradley 22B-E012H204

Core Specifications

Power Rating: 7.5 kW (10 HP).
Input Voltage: 460V to 600V AC, 3-phase.
Output Current: 12 Amps.
Enclosure Style: Replacement Plate Drive with an IP20 rating (NEMA/UL Type Open), which is heatsinkless and designed for panel mounting.
Frame Size: Frame C.
Interface: Features an integral digital keypad and an LED display for monitoring and configuration.
Communication: Includes built-in RS-485 communication. [1, 2, 3, 4, 5, 6]

Key Features

Mounting Options: Can be installed on a DIN rail or via panel mounting.
Zero Stacking: Allows for minimal spacing between drives to save space within an electrical panel.
Control Modes: Supports V/Hz and sensorless vector control for versatile motor speed management.
Protection: Includes drive overload protection and ramp regulation. [1, 2]

Advanced Motor Control Solutions

Designed for variable frequency drive applications, the Allen-Bradley 22B-E012H204 offers reliable and precise motor speed management for industrial setups. With both V/Hz and sensorless vector control options, users can optimize performance, energy efficiency, and motor protection. Its versatility is further enhanced by adjustable acceleration and deceleration, making it ideal for diverse motor control applications.

Ease of Operation and Connectivity

This drive features intuitive programming via a keypad, with remote and RS485 communication capability for integration into complex systems. The built-in LED display ensures clear monitoring of system status, while optional communication modules support expanded network compatibility. The appliance's built-in diagnostics streamline fault identification, contributing to reduced downtime and maintenance costs.

Durability and Compliance

The 22B-E012H204 is engineered for endurance in challenging environments, conforming to IEC, UL, and cUL standards. It is housed in an IP20-rated enclosure with a matte gray/black composite finish for extra protection. With its integrated EMC filter and internal fan cooling, the drive delivers consistent performance even in high-demand conditions, meeting strict industry safety and quality requirements.

FAQ's of Allen-Bradley 22B-E012H204:

Q: How do I program the Allen-Bradley 22B-E012H204 variable frequency drive?

A: You can program the 22B-E012H204 using its integrated keypad, via RS485 communication, or by connecting remote input devices. The keypad allows parameter changes directly on the built-in LED display, while RS485 offers remote programming and monitoring capabilities for easier integration into automated systems.

Q: What types of motor control methods are supported by this drive?

A: This model supports both V/Hz (volts per hertz) control and sensorless vector control, enabling users to choose the best method for their specific motor application. These methods allow for efficient speed control and energy savings in various industrial scenarios.

Q: Where can the 22B-E012H204 be mounted and used?

A: The unit is designed for panel mounting within enclosed drives and has an IP20 (NEMA/UL Open Type) protection level. This makes it suitable for installation in industrial control panels located in environments where adequate enclosure and protection against dust or indirect contact are available.

Q: What is the benefit of the built-in braking unit in this drive?

A: The inbuilt braking unit enhances the drive's ability to decelerate motors quickly and safely. This feature reduces wear on mechanical components and improves operational safety in applications that demand frequent or rapid stopping of the motor.

Q: How does the Allen-Bradley 22B-E012H204 ensure electrical and system safety?

A: The drive complies with IEC, UL, and cUL standards, features fault diagnostic capabilities, and integrates both overload protection (150% for 1 minute) and an EMC filter to minimize electrical noise, ensuring the safety and longevity of both the drive and connected equipment.

Q: What is the process for connecting digital and analog inputs/outputs on this drive?

A: There are 5 digital inputs, 2 digital outputs (including 1 relay and 1 transistor type), 2 analog inputs, and 1 analog output accessible via clearly labeled terminals. This flexibility allows for easy integration with external sensors, control switches, and monitoring devices during installation.
