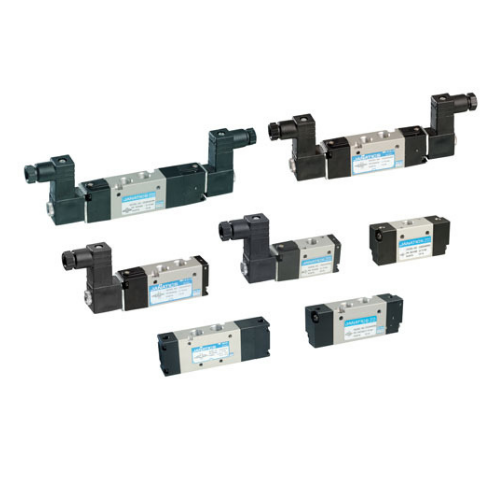

Janatics DS234SR60

Janatics DS234SR60 Specification

Channels
Double Port

Pressure
1.5 to 10 bar

Connection
Threaded

Structure
Double Acting Cylinder

Caliber
60 mm bore

Material
Aluminium

Power
Pneumatic

Media
Air

Temperature of Media
5C to 60C

Port Size
G 1/4

Flange
Yes

Finish
Anodized

Application
Automation, Industrial Machinery

Piston Rod Material
Stainless Steel

Stroke Length
25 mm

Seal Material
Nitrile Rubber

Mounting
Standard

Cushion Type
Adjustable

Model
DS234SR60

Cylinder Type
ISO 6431 / VDMA 24562 standard

Janatics DS234SR60 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Week

About Janatics DS234SR60

Technical Specifications

Model DS2

Type 3/2, 5/2, 5/3

Design Spool type

Port Size Inlet, Outlet, Exhaust - G1/8, External pilot - M5

Medium Compressed air - Dry, filtered, lubricated

Working Pressure range 2 to 8 bar

External pilot pressure (ER model) 2 to 4 bar

Recommended oil for lubrication ISO VG32 (Servo system 32)

Ambient temperature -10 to +60 C

Medium temperature +5 to +50 C

Flow @ 450 lts/min

Materials of construction Aluminium, Nitrile, Brass, Acetal, PBT, Zinc, SS, Nylon, Polyamide

Electrical

Coil width 17 mm

Voltage (V) 10%

AC ( 50 Hz ) - 24, 48, 110, 220

DC - 12, 24, 48, 110

Power consumption AC - 3.6 VA, DC - 2.5 W

Duty cycle Continuous

Class of insulation Class F

Type of coil protection IP65

ISO Standard Reliability

Built according to ISO 6431 and VDMA 24562 standards, the DS234SR60 guarantees interchangeability and consistent quality. This ensures seamless integration into industry-standard systems, making it an excellent choice for both retrofit and new automation projects.

Durable and Efficient Construction

The anodized aluminium body, stainless steel piston rod, and nitrile rubber seals provide outstanding resistance to wear, corrosion, and environmental conditions. The adjustable cushion feature further enhances operational efficiency by minimizing end-of-stroke impact.

Versatile Industrial Applications

Designed for use with air as the operating medium, the DS234SR60 is well-suited for automation and industrial machinery across a range of sectors. Its sturdy construction and threaded connections make it reliable for high-frequency and demanding usage.

FAQ's of Janatics DS234SR60:

Q: How do you install the Janatics DS234SR60 cylinder in automation systems?

A: Installation involves mounting the cylinder using its standard fittings and connecting the G 1/4 ports to your pneumatic lines. Ensure the cylinder is aligned appropriately and tighten all connections to prevent air leakage.

Q: What are the main benefits of the adjustable cushion feature in this cylinder?

A: The adjustable cushion allows you to fine-tune the cushioning effect at the end of the piston stroke, reducing impact, noise, and wear. This enhances service life and optimizes performance in high-speed or sensitive applications.

Q: When should the nitrile rubber seals be inspected or replaced?

A: Seals should be inspected regularly, especially if you notice performance drops or air leaks. Replacement frequency depends on usage and operating conditions, but scheduled maintenance will prolong cylinder life.

Q: Where is the DS234SR60 most commonly used?

A: This model is commonly utilized in industrial automation, machinery, material handling systems, and production lines where consistent pneumatic actuation is required.

Q: What process should be followed to maintain the cylinder's peak performance?

A: Follow a routine maintenance plan: periodically check for air leaks, inspect seals, clean the unit, and lubricate moving parts if recommended. Always use filtered and lubricated air for optimal results.

Q: Can this cylinder be used in harsh environments?

A: Yes, the anodized finish, stainless steel piston rod, and nitrile rubber seals provide strong protection against wear and corrosion, making it suitable for demanding industrial settings within its rated temperature range.
