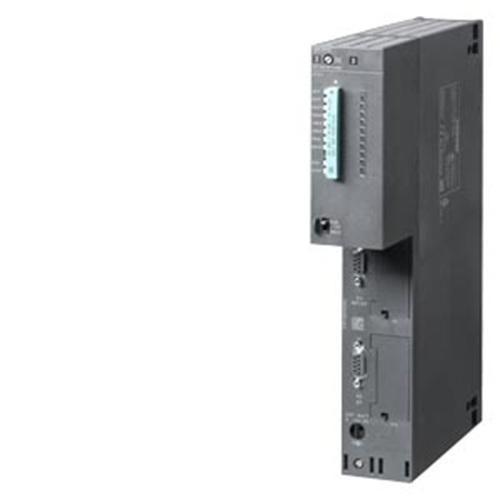

Siemens CPU 417-4 6ES7417-4XT07-0AB0

Siemens CPU 417-4 6ES7417-4XT07-0AB0 Specification

Cover Material
Plastic

Rated Current
0.75 A

Rated Insulation Voltage
60 V (EN 61131)

Protection Class
Class I

Rated Operation Voltage
24 V DC

Cooling System
Passive, Natural Air

Features
High-speed processing, Modular expansion, Redundant configuration support, Large program memory

Components
Main Processor, Memory, Communication Ports, Battery

Cabinet Material
Plastic

Operating Voltage
24 V DC

Protection Level
IP20

Connectivity Type
MPI, PROFIBUS, Industrial Ethernet

Current Rating
0.75 A

Base Material
Plastic

Panel Type
DIN Rail Mountable

Control System
SIMATIC S7-400 PLC

Thickness
Approx. 130 mm (Depth)

Product Type
PLC CPU Module

Material
Plastic / Metal (Enclosure: Plastic, Internal: Metal Components)

Surface Finish
Matte

Standard
IEC 61131-2

Surface Color
Grey

Rated Voltage
24 V DC

Frequency (MHz)
400 MHz

Maximum Output Current
Not Applicable (CPU unit only)

Dimension (L*W*H)
290 mm x 80 mm x 130 mm

Application
Industrial Automation, Process Control, Machine Automation

IP Rating
IP20

Display Type
Status LEDs

Operating Temperature
0 to 60C

Programming Language
STEP 7 (LAD, FBD, STL)

Diagnostic Functions
Integrated, LED Status Indication

Expansion Capacity
Supports up to 64 modules per rack

Number of Communication Ports
4 (2 x PROFIBUS/MPI, 2 x Ethernet)

Mounting Type
Rack/DIN Rail

Battery Backup
Yes, Battery Supported

Processor
Motorola PowerPC

Relative Humidity
5-95% (non-condensing)

Memory (Work/Load/Backup)
15 MB (Work), 64 MB (Load), 512 kB (Backup)

Siemens CPU 417-4 6ES7417-4XT07-0AB0 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
2 Week

Siemens CPU 417-4 6ES7417-4XT07-0AB0 About

6ES7417-4XT07-0AB0

CPU 417-4, 32 MB, 4 INTERFACES

SIMATIC S7-400, CPU 417-4 Central processing unit with: Work memory 32 MB, (16 MB code; 16 MB data) 1st interface MPI 12 Mbit/s; 2nd interface PROFIBUS DP, 3rd/4th interface plug-in IFM module

Powerful Processing and Memory Resources

Equipped with a Motorola PowerPC processor operating at 400 MHz, the Siemens CPU 417-4 delivers exceptional processing speed. The system is designed for demanding automation applications, offering 15 MB work memory, 64 MB load memory, and 512 kB of backup memory. This ample memory supports large, complex programs, making it suitable for intricate process control systems and large-scale industrial projects.

Flexible Communication and Expansion

With two built-in PROFIBUS/MPI ports and two Ethernet ports, the CPU 417-4 allows seamless integration into existing automation networks. Its modular architecture supports up to 64 modules per rack, providing flexibility to expand and adapt to evolving system requirements. Designed for DIN rail or rack mounting, this unit ensures easy installation and integration in varied industrial settings.

Reliable Operation and Advanced Diagnostics

The CPU 417-4 operates reliably within 0-60C and up to 95% relative humidity (non-condensing). It features battery backup for data retention, integrated diagnostic functions, and intuitive LED status indicators for rapid troubleshooting. Its enclosure meets IP20 protection standards, ensuring durability in demanding environments while keeping maintenance and downtime to a minimum.

FAQ's of Siemens CPU 417-4 6ES7417-4XT07-0AB0:

Q: How does the Siemens CPU 417-4 benefit industrial automation applications?

A: The CPU 417-4 offers high-speed processing, large memory capacity, and modular expansion, making it suitable for complex automation tasks. Its integrated diagnostics, battery backup, and robust communications ensure reliability and efficiency in industrial environments.

Q: What programming languages are supported by the CPU 417-4?

A: This CPU can be programmed using STEP 7, supporting Ladder Diagram (LAD), Function Block Diagram (FBD), and Statement List (STL), providing flexibility for automation engineers to design and implement control solutions.

Q: When should I consider using the CPU 417-4 instead of other CPUs in the S7-400 range?

A: Choose the CPU 417-4 for applications requiring extensive program sizes, rapid processing, high connectivity, and support for large system expansions (up to 64 modules per rack), such as large-scale process control or machine automation projects.

Q: Where can the CPU 417-4 be mounted and what installation options are available?

A: The unit is designed for rack or DIN rail mounting, suitable for standard industrial automation cabinets. Its compact size and IP20 protection rating allow for easy integration into control panels and enclosures.

Q: What communication interfaces are available on the CPU 417-4?

A: It includes four communication ports: two PROFIBUS/MPI and two Ethernet ports, facilitating connections with diverse industrial networks and allowing integration with multiple automation devices.

Q: How are diagnostic and status indications provided on the CPU 417-4?

A: Integrated diagnostics and LED status indicators on the front panel offer real-time system monitoring, making it easy for operators to identify and address faults or issues quickly.

Q: What advantages does the battery backup system provide for the CPU 417-4?

A: The battery backup preserves memory contents during power loss, ensuring critical program and process data are retained. This function minimizes downtime and protects against data loss in industrial operations.
