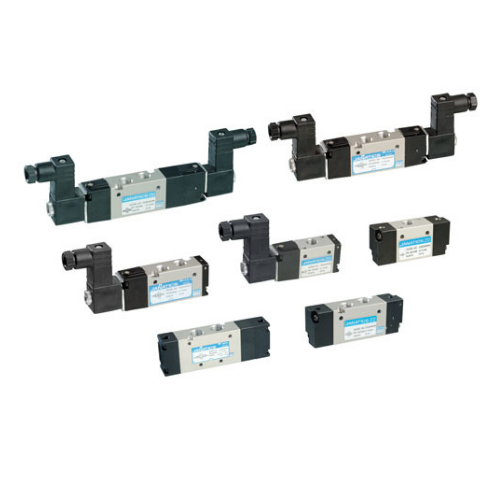

Janatics DS234SS60

Janatics DS234SS60 Specification

Pressure
0.2~0.8 MPa

Channels
2

Connection
Threaded

Caliber
Standard

Structure
Spool

Material
Stainless Steel

Power
Pneumatic

Media
Air

Temperature of Media
-20 to 80C

Port Size
G1/8

Flange
No

Finish
Polished

Application
Industrial Automation

Type
5/2 Double Solenoid Valve

Weight
Approx. 425g

Protection Class
IP65 (with cable connector)

Body Material
SS316

Flow Rate
750 l/min

Mounting
Base Mounted

Operating Voltage
24V DC

Response Time
60 ms

Model Number
DS234SS60

Actuation Type
Solenoid Operated

Seals
NBR

Janatics DS234SS60 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Week

About Janatics DS234SS60

Technical Specifications

Model DS2

Type 3/2, 5/2, 5/3

Design Spool type

Port Size Inlet, Outlet, Exhaust - G1/8, External pilot - M5

Medium Compressed air - Dry, filtered, lubricated

Working Pressure range 2 to 8 bar

External pilot pressure (ER model) 2 to 4 bar

Recommended oil for lubrication ISO VG32 (Servo system 32)

Ambient temperature -10 to +60 C

Medium temperature +5 to +50 C

Flow @ 450 lts/min

Materials of construction Aluminium, Nitrile, Brass, Acetal, PBT, Zinc, SS, Nylon, Polyamide

Electrical

Coil width 17 mm

Voltage (V) 10%

AC ( 50 Hz ) - 24, 48, 110, 220

DC - 12, 24, 48, 110

Power consumption AC - 3.6 VA, DC - 2.5 W

Duty cycle Continuous

Class of insulation Class F

Type of coil protection IP65

Engineered for Durability and Performance

Constructed from SS316 stainless steel and finished with a polished surface, the DS234SS60 valve ensures maximum resistance to corrosion and mechanical wear. Its strong, reliable spool structure and NBR seals provide a long operational life even in harsh environments, making it a solid choice for continuous industrial use.

Precision Control for Automation

With a flow rate of 750 l/min and rapid switching time of less than 60 ms, the valve enhances process efficiency. The double solenoid mechanism allows for accurate bidirectional airflow control, crucial for synchronizing machinery and optimizing industrial automation tasks.

Safe and Simple Installation

This base-mounted valve features IP65-rated protection with cable connector, ensuring safety from dust and moisture. Its standard threaded G1/8 port size and compact design allow for straightforward integration into existing pneumatic systems, contributing to hassle-free installation and maintenance.

FAQ's of Janatics DS234SS60:

Q: How does the Janatics DS234SS60 valve operate within an industrial automation system?

A: The DS234SS60 uses double solenoid actuation to control the direction of airflow in pneumatic systems. Upon receiving a 24V DC electrical signal, the solenoids shift the internal spool, allowing or blocking air passage through the valve's channels to actuate connected devices such as cylinders or actuators.

Q: What are the main benefits of selecting the DS234SS60 valve for automation processes?

A: Key benefits include a rapid response time ( 60 ms), robust construction from SS316 stainless steel for corrosion resistance, high flow rate, and IP65 protection. This ensures reliable operation, longevity, and safe performance even in demanding industrial environments.

Q: When should I consider using a double solenoid valve like the DS234SS60 in my project?

A: Double solenoid valves are ideal when precise control over the piston position is necessary and when it is important to maintain the valve position even after power loss. Use the DS234SS60 for applications requiring bidirectional movement or quick switching between two states.

Q: Where can the DS234SS60 be installed, and what mounting method does it use?

A: The DS234SS60 is base mounted, allowing for secure installation on machinery panels or manifolds. Its standard G1/8 threaded ports provide compatibility with most pneumatic setups, making it suitable for a variety of industrial environments, particularly in automation sectors.

Q: What process media and operating conditions are suitable for this valve?

A: This valve is designed for air as the process media and operates efficiently in temperatures from -20C to 80C. It works best within a pressure range of 0.2 to 0.8 MPa, ensuring adaptable use in various climate and pressure conditions encountered in industrial automation.

Q: How should the DS234SS60 valve be integrated and connected in a pneumatic system?

A: Simply connect the base-mounted valve to your pneumatic lines using the standard G1/8 threaded ports. Electrical wiring should supply 24V DC to the solenoid connectors, while ensuring that proper cable connectors are used for IP65-rated protection against moisture and dust.
