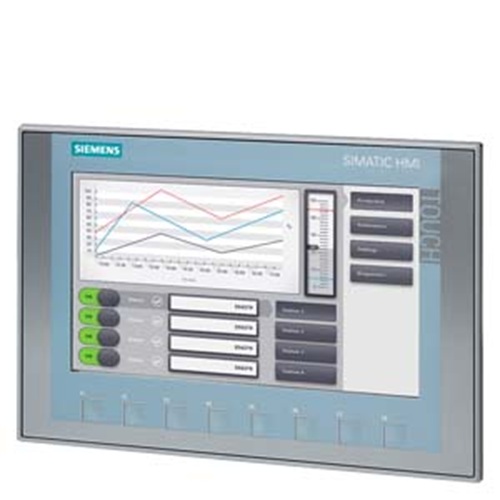

Siemens SIPLUS HMI KTP900 BASIC 6AG1123-2JB03-2AX0

Siemens SIPLUS HMI KTP900 BASIC 6AG1123-2JB03-2AX0 Specification

Features
Bright display, touch operation, operator friendly, robust design

Cabinet Material
Plastic

Panel Type
Touch Panel

Control System
SIMATIC S7 compatible

Base Material
Plastic

Rated Current
0.5 A

Cooling System
Passive

Protection Class
Class III

Connectivity Type
2 x Ethernet (RJ45), 2 x USB, 1 x PROFINET

Way
Single

Operating Voltage
24 V DC

Components
LCD-TFT Display, Touchscreen, LED Backlight

Cover Material
Plastic

Protection Level
IP65 (front), IP20 (rear)

Current Rating
500 mA

Rated Insulation Voltage
500 V

Rated Operation Voltage
24 V DC

Thickness
56 mm

Product Type
Basic HMI Panel

Material
Plastic, Aluminum

Surface Finish
Matte

Standard
IEC61131, CE, UL

Surface Color
Gray/Black

Rated Voltage
24 V DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
500 mA

Dimension (L*W*H)
246 mm x 170 mm x 56 mm

Application
Industry Automation

IP Rating
IP65

Display Type
TFT Color Touch Display

Operating Temperature
-25C to +60C

Input Voltage Range
19.2 - 28.8 V DC

Weight
1.3 kg

User Memory
128 MB

Data Storage
128 MB

Relative Humidity
5% to 85% (non-condensing)

Touch Technology
Analog resistive

Communication Protocols
PROFIBUS, PROFINET, Ethernet, USB

Number of Function Keys
8 (touch)

Mounting Type
Panel Mount

Display Resolution
800 x 480 pixels (WVGA)

Backlight
LED

Display Size
9 inch (diagonal)

Siemens SIPLUS HMI KTP900 BASIC 6AG1123-2JB03-2AX0 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
2 Week

About Siemens SIPLUS HMI KTP900 BASIC 6AG1123-2JB03-2AX0

6AG1123-2JB03-2AX0

SIPLUS HMI KTP900 BASIC

SIPLUS HMI KTP900 Basic Color PN based on 6AV2123-2JB03-0AX0 with conformal coating, -20+50 C, 9" TFT display, 65536 colors PROFINET interface

Intuitive User Interface for Enhanced Control

Equipped with a vibrant 9-inch color touchscreen and 8 function keys, the SIPLUS HMI KTP900 BASIC offers an intuitive platform for operators. Its analog resistive touch technology allows precise input even with gloves, while clear graphics and user-friendly menus streamline monitoring and control processes. The LED backlight ensures visibility in various lighting conditions, optimizing workflow efficiency.

Rugged Design for Industrial Environments

Built for durability, this HMI features a robust plastic and aluminum enclosure, with a front IP65 rating and wide temperature range. It resists dust, water splashes, and vibration, making it ideal for demanding industrial applications. Its passive cooling system and Class III protection enhance longevity and safety in challenging factory or production setups.

Seamless Connectivity and Compatibility

Supporting PROFIBUS, PROFINET, Ethernet, and USB, the SIPLUS KTP900 BASIC integrates easily with SIMATIC S7 systems and other industrial controls. Its dual Ethernet ports and USB interfaces allow flexible network configurations, efficient data exchange, and easy firmware updates, ensuring smooth operation in modern automated environments.

FAQ's of Siemens SIPLUS HMI KTP900 BASIC 6AG1123-2JB03-2AX0:

Q: How does the Siemens SIPLUS HMI KTP900 BASIC improve operator usability on the factory floor?

A: The KTP900 BASIC features a large 9-inch touch display with 8 dedicated function keys, providing a clear interface and responsive interaction. Analog resistive touch technology enables reliable operation with gloves, while the intuitive layout helps operators quickly monitor and control machinery, reducing downtime and increasing productivity.

Q: What are the recommended installation conditions for this HMI panel?

A: This device is designed for panel mounting in an industrial setting. It operates effectively in ambient temperatures from -25C to +60C, with relative humidity levels between 5% and 85% (non-condensing), and offers IP65 protection at the front, making it suitable for areas exposed to dust and water spray.

Q: When is it beneficial to use the SIPLUS HMI KTP900 BASIC over traditional operator panels?

A: The SIPLUS HMI KTP900 BASIC excels in harsh or demanding environments where robust construction and reliability are necessary. Its enhanced durability, extended temperature range, and flexible communication protocols make it preferable to conventional panels in modern automation or manufacturing facilities.

Q: Which communication protocols does this HMI support, and how does that affect integration?

A: This panel supports PROFIBUS, PROFINET, Ethernet, and USB, facilitating straightforward integration with a variety of PLCs and industrial networks, including SIMATIC S7. These protocols enable stable real-time communication and flexible system architecture for comprehensive automation solutions.

Q: What is the process for data storage and backup on this device?

A: The HMI features 128 MB of integrated user memory for project data and logging. For backups and updates, data can be transferred via its two USB ports, ensuring secure and efficient maintenance or firmware upgrades when needed.

Q: Where is the Siemens SIPLUS HMI KTP900 BASIC most effectively utilized?

A: This panel is ideally used in automated manufacturing, processing lines, or any industrial application requiring a reliable, easy-to-operate human-machine interface with strong environmental resistance and seamless device integration.
