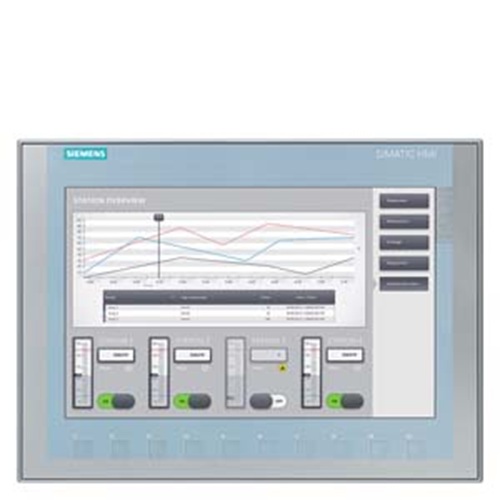

Siemens SIPLUS HMI KTP1200 BASIC 6AG1123-2MB03-2AX0

Siemens SIPLUS HMI KTP1200 BASIC 6AG1123-2MB03-2AX0 Specification

Control System
PLC compatible

Protection Level
IP65 (front), IP20 (rear)

Protection Class
Class III

Panel Type
Touch panel

Cover Material
Aluminum front casing

Rated Insulation Voltage
500 V

Cooling System
Passive cooling

Connectivity Type
Ethernet, USB

Rated Operation Voltage
24 V DC

Thickness
80 mm (depth)

Base Material
Plastic

Operating Voltage
24 V DC

Cabinet Material
Plastic and aluminum

Features
12 widescreen display, multi-language support, integrated interface

Components
Touchscreen, Ethernet port, USB ports

Product Type
HMI (Human Machine Interface) Basic Panel

Material
Plastic and aluminum

Surface Finish
Matte

Standard
IEC/EN 61131-2

Surface Color
Gray

Rated Voltage
24 V DC

Dimension (L*W*H)
346 mm x 271 mm x 56 mm

Application
Industrial automation

IP Rating
IP65 (front)

Display Type
TFT color display, touch screen

Communication Ports
1 x Ethernet (RJ45), 2 x USB 2.0, 1 x RS-485 (optional)

Display Resolution
1280 x 800 pixels (WXGA)

Data Storage
Built-in Flash memory (12 MB)

Max. Power Dissipation
18 W

Storage Temperature
-30C to +70C

Weight
approx. 2.7 kg

Backlighting
LED

Software
WinCC Basic (TIA Portal)

Mounting Type
Panel mounting

Display Size
12.1 inches

Operating Temperature
-25C to +60C

Touch Technology
Analog resistive

Number of Colors
64k colors

Product Series
SIPLUS HMI KTP Basic

Power Consumption
max. 18 W

Relative Humidity
5% to 85%, non-condensing

Siemens SIPLUS HMI KTP1200 BASIC 6AG1123-2MB03-2AX0 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
2 Week

About Siemens SIPLUS HMI KTP1200 BASIC 6AG1123-2MB03-2AX0

6AG1123-2MB03-2AX0

SIPLUS HMI KTP1200 BASIC

SIPLUS HMI KTP1200 Basic based on 6AV2123-2MB03-0AX0 with conformal coating, -10+50 C, key/touch operation, 12" TFT display, 65536 colors PROFINET interface, configurable as of WinCC Basic V13/ STEP 7 Basic V13, contains open source software, which is provided free of charge see enclosed CD-ROM

Robust Industrial-grade Display

Designed for reliability, the SIPLUS HMI KTP1200 BASIC offers a 12.1-inch TFT color touchscreen with a high resolution of 1280 x 800 pixels and an impressive 64,000 color depth. The analog resistive touch technology allows precise control even with gloves, making it suitable for busy industrial environments. LED backlighting delivers optimal visibility in various lighting conditions while supporting long-term durability.

Versatile Connectivity and Mounting

This HMI features an assortment of connectivity options, including Ethernet (RJ45), USB 2.0 ports, and optional RS-485, facilitating easy integration with multiple devices and networks. Designed for panel mounting, its IP65-rated front ensures protection against dust and splashes, making it ideal for both new installations and retrofitting existing cabinets.

Superior Environmental Resistance

Engineered for resilience, the SIPLUS HMI KTP1200 BASIC operates across a broad temperature range from -25C to +60C, enduring harsh ambient conditions. Its aluminum front casing and plastic body provide robust protection, while passive cooling enhances reliability by reducing moving parts and maintenance needs. The matte, anti-glare finish supports smooth operation even in challenging lighting.

FAQ's of Siemens SIPLUS HMI KTP1200 BASIC 6AG1123-2MB03-2AX0:

Q: How does the SIPLUS HMI KTP1200 BASIC handle harsh industrial environments?

A: The HMI features an IP65-rated front for protection against dust and water splashes, a wide operating temperature range (-25C to +60C), and durable aluminum-plastic construction. This robust design ensures reliable operation in diverse industrial conditions.

Q: What process is followed to integrate this HMI with my automation system?

A: Integration is straightforward using its Ethernet (RJ45) and USB 2.0 ports. The HMI is compatible with Siemens PLCs and is configured via WinCC Basic (TIA Portal) software, enabling intuitive visualization and control processes for automated systems.

Q: Where is the ideal placement and mounting method for this HMI?

A: The device is designed for panel mounting in control cabinets. Its compact dimensions (346 mm x 271 mm x 56 mm) and front-facing IP65 protection make it suitable for industrial operator panels, machinery, and factory floor environments.

Q: What are the benefits of the analog resistive touch technology used in the HMI?

A: Analog resistive touchscreens respond reliably to both finger and gloved touch, making them ideal for industrial settings. They provide precise control even in challenging or harsh environmental conditions where capacitive technology may not perform well.

Q: When should I use the optional RS-485 port?

A: The optional RS-485 port should be used when integrating the HMI with equipment or controllers that communicate over RS-485. This is common in legacy industrial networks or when additional serial communication is necessary alongside Ethernet or USB.

Q: How is data stored and managed on this HMI?

A: The HMI comes with 12 MB of built-in flash memory, suitable for storing operating system files, project data, and user interfaces. Data management and backups can be facilitated through the USB ports and configuration software, streamlining updates and maintenance.
