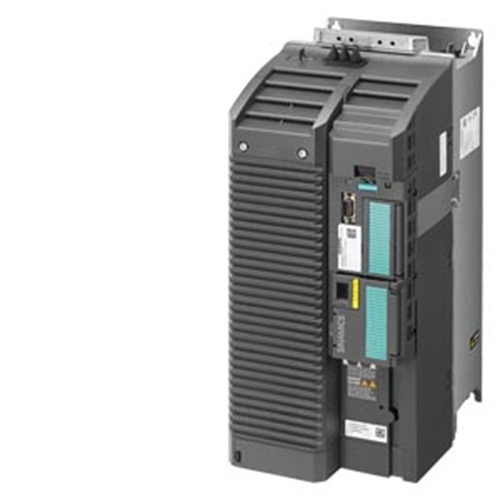

Siemens SINAMICS G120C PN 6SL3210-1KE24-4UF1

Siemens SINAMICS G120C PN 6SL3210-1KE24-4UF1 Specification

Rated Operation Voltage
400 V AC

Control System
Vector Control (V/f, FCC, Sensorless Vector)

Current Rating
5.9 A

Cooling System
Internal Fan

Cabinet Material
Sheet Steel

Cover Material
Plastic

Components
Power Module with Control Unit

Protection Level
IP20

Rated Current
5.9 A

Way
3 Phase Output

Features
Integrated safety functions, Compact design, Easy commissioning

Connectivity Type
PROFINET, Digital/Analog Input

Protection Class
Class I

Base Material
Metal

Panel Type
Integrated Operator Panel

Operating Voltage
380-480V AC

Rated Insulation Voltage
500 V

Product Type
AC Drive / Frequency Converter

Material
Plastic and Metal Composite

Surface Finish
Matte

Standard
IEC/EN 61800-5-1

Surface Color
Grey

Rated Voltage
3AC 380-480V (+10%, -20%)

Frequency (MHz)
50/60 Hz

Maximum Output Current
7.8 A

Dimension (L*W*H)
285 x 140 x 151 mm

Application
Pumps, Fans, Compressors, Conveyor Systems

IP Rating
IP20

Display Type
LED/Status Display

Analog Inputs
2

Number of Digital Inputs
6

Number of Digital Outputs
2

Weight
3.6 kg

Braking Chopper
Integrated

Ambient Temperature Range
-10C to +50C

EMC Filter
Integrated

Mounting
Wall-mount, Panel-mount

Signal Terminals
Pluggable type

Communication Ports
Ethernet PROFINET, RS485

Overload Capability
150% for 60 seconds

Motor Power
4 kW (5 HP)

Analog Outputs
1

Siemens SINAMICS G120C PN 6SL3210-1KE24-4UF1 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
2 Week

Siemens SINAMICS G120C PN 6SL3210-1KE24-4UF1 About

6SL3210-1KE24-4UF1

SINAMICS G120C PN 22,0KW UNFIL

SINAMICS G120C rated power: 22.0 kW with 150% overload for 3 s. 380-480 V 3AC +10/-20% 47-63 Hz unfiltered I/O interface: 6 DI, 2 DO, 1 AI, 1 AO Safe Torque Off integrated fieldbus integrated: PROFINET-PN degree of protection IP20/UL open type size: FSD 472x 200x 237 (HxWxD) external 24 V

Versatile Applications

The G120C PN 6SL3210-1KE24-4UF1 is engineered for a broad range of industrial uses, such as pumps, fans, compressors, and conveyor systems. Its adaptability makes it an excellent solution in manufacturing plants, water treatment facilities, and HVAC systems, ensuring seamless control and energy savings in varied environments.

Advanced Control & Connectivity

Featuring both PROFINET and RS485 communication, this drive offers seamless integration with modern automation systems. The combination of multiple digital and analog inputs/outputs allows for precise monitoring and control adapting easily to different industrial requirements and ensuring flexible operation.

Safety and Robust Design

Built with user safety in mind, the converter includes integrated safety functions, an internal cooling fan, and a durable matte-finished enclosure. Complying with IEC/EN 61800-5-1 standards, it maintains reliable operation even in tough industrial conditions within a temperature range of -10C to +50C.

FAQ's of Siemens SINAMICS G120C PN 6SL3210-1KE24-4UF1:

Q: How can the SINAMICS G120C PN be installed in an industrial setting?

A: The SINAMICS G120C PN 6SL3210-1KE24-4UF1 supports both wall-mount and panel-mount installations, allowing easy integration into control cabinets or directly onto facility walls. Its compact dimensions and pluggable signal terminals facilitate straightforward and secure wiring.

Q: What types of industrial applications benefit from using this frequency converter?

A: This model is ideal for controlling pumps, fans, compressors, and conveyor systems. Its advanced control systems and robust design ensure reliable and energy-efficient motor operation in manufacturing, water treatment, and HVAC industries.

Q: When should I use the integrated braking chopper feature?

A: The integrated braking chopper is beneficial during rapid deceleration or when stopping large motors, as it dissipates excess energy safely. This function is especially useful in conveyor systems or other applications with frequent starts and stops.

Q: Where can I connect the SINAMICS G120C PN to my automation network?

A: The inverter offers Ethernet PROFINET and RS485 communication ports, allowing direct integration into various industrial automation networks. This ensures compatibility with modern PLCs and distributed control systems.

Q: What is the commissioning process for this drive?

A: Commissioning the SINAMICS G120C PN is streamlined, aided by an integrated operator panel and LED/status display. Users can follow guided setup instructions to configure parameters quickly, ensuring the drive is operational in a short time frame.

Q: How does the drive contribute to operational safety?

A: Integrated safety features, such as safe torque off (STO), and the robust enclosure ensure personnel and equipment protection. Compliance with IEC/EN 61800-5-1 further enhances its safety credentials.

Q: What are the overall benefits of choosing this model for industrial automation?

A: Key benefits include compact design, energy-efficient motor control, simple commissioning, integrated safety, and broad connectivity options. These features help reduce downtime, lower operating costs, and enhance system reliability.
