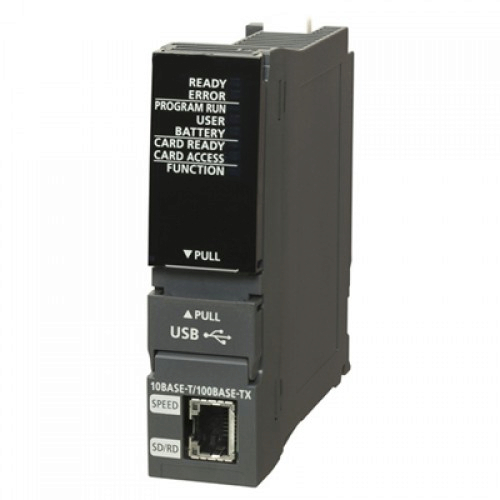

Send InquiryMitsubishi R16CPU
Price 105000.0 INR/ Unit
MOQ : 1 Unit
Mitsubishi R16CPU Specification
- Components
- Main CPU module, System Bus, user interface ports
- Rated Current
- 0.7A
- Operating Voltage
- 5V DC
- Cover Material
- Plastic
- Protection Class
- Class I
- Panel Type
- DIN Rail Mount or Panel Mount
- Thickness
- 56 mm
- Cooling System
- Passive (no fan required)
- Base Material
- Metal
- Rated Operation Voltage
- 5V DC
- Rated Insulation Voltage
- 500V AC
- Way
- Rack Mount (Base Unit)
- Current Rating
- 0.7A
- Protection Level
- IP20
- Control System
- Programmable Logic Control (PLC)
- Connectivity Type
- Ethernet, USB, CC-Link IE Field
- Cabinet Material
- Plastic, Metal
- Features
- High-speed processing, Multi-CPU support, Robust communication protocols
- Product Type
- Programmable Logic Controller (PLC) CPU Module
- Material
- Plastic, Metal
- Surface Finish
- Matte
- Standard
- IEC 61131-2
- Surface Color
- Gray
- Rated Voltage
- 5V DC
- Frequency (MHz)
- 200 MHz
- Maximum Output Current
- 0.7A
- Dimension (L*W*H)
- 90mm x 42mm x 106mm
- Application
- Industrial Automation, Factory Equipment Control
- IP Rating
- IP20
- Display Type
- LED Status Indicators
- Ambient Operating Temperature
- 0C to 55C
- Scan Time
- Less than 0.98s per basic instruction
- Input/Output Points
- 4096 points max
- Weight
- Approx. 0.3 kg
- Memory Capacity
- 40k steps (program), 256k bytes (data)
- Relative Humidity
- 5% to 95% (Non-condensing)
- Storage Temperature
- -25C to 75C
- Expansion Capability
- Supported with R Series expansion modules
- Mounting Type
- Panel or DIN Rail
- Program Capacity
- 40,960 steps
Mitsubishi R16CPU Trade Information
- Minimum Order Quantity
- 1 Unit
- Delivery Time
- 2 Week
About Mitsubishi R16CPU
Series
MELSEC IQ-R SERIES
Type
STANDARD CPU
Program Memory
160K
Program Memory Unit
STEPS
Local I/O Points
4096
Local + Remote I/O Points
16384
Cycle Time LD (ns)
0,98
Cycle Time MOV (ns)
1,96
USB
1
Ethernet Port
1
Buffer Battery
YES
Int. Current Consumption (A)
0,67
| Series | MELSEC IQ-R SERIES |
|---|---|
| Type | STANDARD CPU |
| Program Memory | 160K |
| Program Memory Unit | STEPS |
| Local I/O Points | 4096 |
| Local + Remote I/O Points | 16384 |
| Cycle Time LD (ns) | 0,98 |
| Cycle Time MOV (ns) | 1,96 |
| USB | 1 |
| Ethernet Port | 1 |
| Buffer Battery | YES |
| Int. Current Consumption (A) | 0,67 |
Conformity
CE
COMPLIANT
UL/cUL
COMPLIANT
EAC
NON-COMPLIANT
Shipping Approvals
ABS,BV,DNV GL,LR,NK,RINA
UKCA
COMPLIANT
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | NON-COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| UKCA | COMPLIANT |
Product Dimensions & Weight
Width (mm)
27,8
Height (mm)
98 (106)
Depth (mm)
110
Weight (kg)
0,2
| Width (mm) | 27,8 |
|---|---|
| Height (mm) | 98 (106) |
| Depth (mm) | 110 |
| Weight (kg) | 0,2 |
Life Cycle
Serial No. on the Box
QR1
| Serial No. on the Box | QR1 |
|---|
Campaigns
Selling Status
Standard
| Selling Status | Standard |
|---|
Product Packaging
Cardboard (g)
45
Other paper (g)
26
| Cardboard (g) | 45 |
|---|---|
| Other paper (g) | 26 |
Optimized for Industrial Automation
The Mitsubishi R16CPU is engineered for demanding industrial automation tasks, offering high-speed processing at 200 MHz and multi-CPU support. Its expandable architecture and robust communication protocols make it suitable for complex factory applications. With up to 4096 I/O points and fast scan times, it ensures efficient real-time control and monitoring.
Flexible Mounting and Reliable Operation
Designed for versatility, the R16CPU can be mounted on both DIN rails or panels, allowing seamless integration into various control cabinets. Its durable plastic and metal construction provides IP20-rated protection, and it reliably operates within a broad temperature and humidity range, making it suitable for different factory environments.
FAQ's of Mitsubishi R16CPU:
Q: How can the Mitsubishi R16CPU be installed in my control cabinet?
A: The R16CPU supports both DIN rail and panel mounting, giving you flexibility to integrate it into standard control cabinets using the included mounting hardware. Its compact dimensions (90mm x 42mm x 106mm) and lightweight design (approx. 0.3 kg) facilitate easy installation.Q: What are the main benefits of using the R16CPU for industrial automation?
A: The R16CPU offers high-speed processing (200 MHz), large memory capacity, and robust expansion capabilities. It supports up to 4096 I/O points, features multi-CPU functionality, and provides reliable operation across wide environmental conditions, which collectively enhance system productivity and flexibility.Q: When should I expand the R16CPU's capabilities?
A: Expand the R16CPU's capabilities whenever your application demands more I/O points, additional functions, or specific communication options. The unit readily supports R Series expansion modules, making it scalable as your automation needs grow.Q: Where is the Mitsubishi R16CPU best applied?
A: The R16CPU is ideal for industrial automation environments, such as factory equipment control, production lines, and complex machine systems, particularly where reliable operation, high-speed processing, and expansive I/O support are required.Q: What is the typical process for connecting the R16CPU to other devices?
A: Connect the R16CPU to other devices via Ethernet, USB, or CC-Link IE Field interfaces. These interfaces facilitate communication with Human-Machine Interfaces (HMIs), supervisory systems, and peripheral devices, supporting efficient system integration.Q: How does the R16CPU ensure operational safety and durability?
A: The unit features IP20 protection, Class I insulation, and is built from durable plastic and metal. It operates safely within -25C to 75C storage and 0C to 55C ambient conditions, and meets IEC 61131-2 safety standards.
