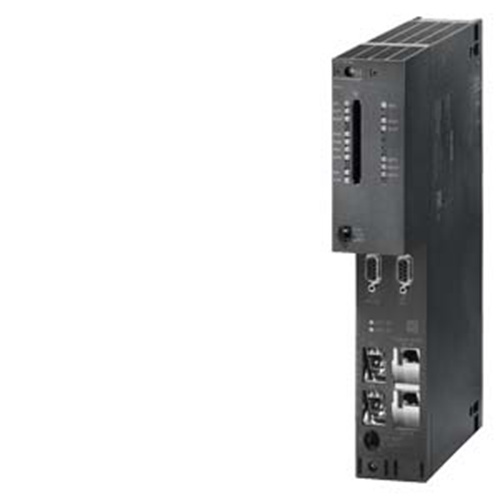

Siemens CPU416-5H PN/DP 6ES7416-5HS06-0AB0

Siemens CPU416-5H PN/DP 6ES7416-5HS06-0AB0 Specification

Rated Operation Voltage
24 V DC

Thickness
Approx. 35 mm

Features
Redundant CPU, High-speed Processing, Hot Swappable

Connectivity Type
PROFIBUS DP, PROFINET, Ethernet

Protection Class
Class 1

Rated Insulation Voltage
500 V

Protection Level
IP20

Operating Voltage
24 V DC

Panel Type
Rack-mount Panel

Cooling System
Passive

Components
Main CPU unit, front interface, power supply interface

Way
Rack Mounting

Control System
Redundant, Distributed Control System (DCS)

Cover Material
Plastic

Rated Current
Approx. 1.8 A (at 24V DC)

Current Rating
1.8 A (nominal at 24V DC)

Base Material
Industrial-Grade Plastic

Cabinet Material
Plastic Enclosure

Product Type
PLC CPU Module

Material
Plastic and Metal Components

Surface Finish
Matte

Standard
Siemens S7-400H

Surface Color
Grey

Rated Voltage
24V DC

Frequency (MHz)
Approx. 66 MHz CPU Clock

Dimension (L*W*H)
290 mm x 25 mm x 219 mm

Application
Process Automation, SCADA, Factory Automation

IP Rating
IP20

Display Type
Status LEDs

Module Weight
Approx. 1.1 kg

Mounting Type
Rack Mount (S7-400 Rail)

Cycle Time
0.02 ms/K instruction

Firmware Upgrade
Supported (via Memory Card)

Memory
4 MB Load memory, 2 MB Work memory

Number of Communication Interfaces
3 (PROFINET, 2x PROFIBUS DP)

Operating Temperature Range
0C to +60C

Backup Battery
Yes, Lithium

Relative Humidity
5% to 95% (non-condensing)

Hot Swapping
Supported

Synchronization Feature
Yes, for redundancy operation

Part Number
6ES7416-5HS06-0AB0

ESD Protection
Yes (Sensitive electronic device)

Programming Language
LAD, FBD, STL, SCL, Graph

Siemens CPU416-5H PN/DP 6ES7416-5HS06-0AB0 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
2 Week

About Siemens CPU416-5H PN/DP 6ES7416-5HS06-0AB0

6ES7416-5HS06-0AB0

CPU416-5H PN/DP, 16MB F. S7-400H/F/FH

SIMATIC S7-400H, CPU 416-5H, central processing unit for S7-400H and S7-400F/FH, 5 interfaces: 1x MPI/DP, 1x DP, 1x PN and 2 for sync modules, 16 MB memory (10 MB data/6 MB program)

Redundancy and High Availability

The CPU416-5H PN/DP is engineered for redundancy, enabling continuous operation even if one CPU fails. Synchronization ensures seamless switchover in redundant and distributed control systems, enhancing reliability in critical industrial processes.

Advanced Communication Interfaces

With integrated PROFINET and dual PROFIBUS DP interfaces, this CPU ensures flexible connectivity for various automation networks. Its capabilities support scalable and distributed automation architectures, making it ideal for complex factory environments.

Flexible Programming and Hot Swapping

Supporting multiple programming languages such as LAD, FBD, STL, SCL, and Graph, the Siemens CPU416-5H PN/DP enables tailored process logic. The hot swap feature allows replacement without shutting down the system, reducing maintenance downtime.

FAQ's of Siemens CPU416-5H PN/DP 6ES7416-5HS06-0AB0:

Q: How can I upgrade the firmware of the Siemens CPU416-5H PN/DP?

A: Firmware upgrades for the CPU416-5H PN/DP can be carried out using a memory card, allowing you to update the system efficiently while minimizing downtime. Detailed upgrade procedures are provided in the product's technical manual.

Q: What makes the CPU416-5H PN/DP suitable for redundant and distributed control systems?

A: This CPU is specifically designed for redundancy, featuring synchronization for seamless operation in dual setups. In case of hardware failure, hot-swapping and synchronized control ensure uninterrupted process automation.

Q: When should the built-in backup lithium battery be replaced?

A: The backup lithium battery should be replaced according to the maintenance schedule or when a low-battery status is indicated by LED warnings. Refer to the manual for battery type specifications and replacement instructions.

Q: Where can the Siemens CPU416-5H PN/DP be installed?

A: This CPU is intended for rack mounting on S7-400 rails within industrial control cabinets. It operates reliably in environments with temperatures from 0C to +60C and relative humidity of 5% to 95% (non-condensing).

Q: What programming languages are supported by the CPU416-5H PN/DP?

A: You can program this CPU using Ladder Diagram (LAD), Function Block Diagram (FBD), Statement List (STL), Structured Control Language (SCL), and Graph, making it versatile for a range of process applications.

Q: How does hot swapping benefit process automation with this CPU?

A: Hot swapping enables users to replace or add modules without interrupting the entire system. This advantage greatly minimizes production downtime and maintenance disruptions during critical operations.

Q: What is the process for connecting to communication networks using CPU416-5H PN/DP?

A: The CPU provides interfaces for PROFINET, PROFIBUS DP, and Ethernet connections. Configuration is managed via Siemens programming software, allowing seamless integration with distributed automation networks.
