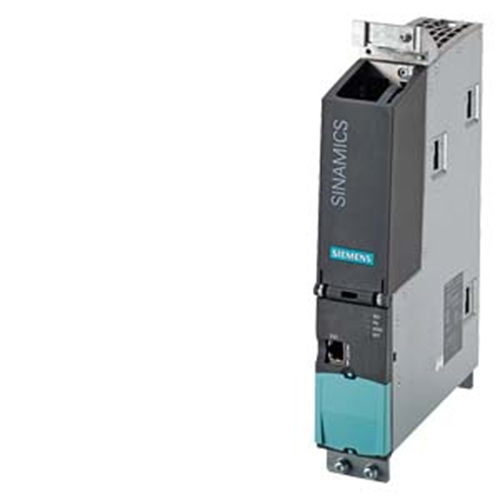

Siemens CU320-2 PN 6SL3040-1MA01-0AA0

Siemens CU320-2 PN 6SL3040-1MA01-0AA0 Specification

Rated Operation Voltage
24 V DC

Rated Insulation Voltage
50 V

Panel Type
DIN Rail Mounting

Protection Class
Class III

Current Rating
2.7 A

Features
High Performance, Modular Design, Profinet Connectivity

Connectivity Type
Profinet, Ethernet

Base Material
Plastic

Components
Control Unit for Modular Drive System

Cooling System
Air Cooled

Protection Level
IP20

Cabinet Material
Plastic

Operating Voltage
24 V DC

Control System
Microprocessor-based

Rated Current
2.7 A

Thickness
Standard Module

Cover Material
Plastic

Product Type
Control Unit (CU320-2 PN)

Material
Plastic/Metal Composite

Surface Finish
Matte

Standard
IEC 61800-5-1

Surface Color
Grey

Rated Voltage
24 V DC

Frequency (MHz)
50/60 Hz

Maximum Output Current
2.7 A

Dimension (L*W*H)
192 mm x 73 mm x 163 mm

Application
SINAMICS S120 Drive System

IP Rating
IP20

Display Type
LED Indicators

Bus Interface
2 x Ethernet RJ45, 1 x PROFIBUS/MPI

Ambient Operating Altitude
Max. 2000 m above sea level

Diagnostic Functions
Integrated System and Drive Diagnostics

Net Weight
Approx. 1.2 kg

Mounting Type
DIN rail or Panel Mount

Power Consumption
Approx. 7 W

Supported Protocols
PROFIBUS, PROFINET IO, Ethernet/IP

System Integration
For SINAMICS S120 Multi-axis Drive Systems

Firmware Update
Supported via Fieldbus

Storage Temperature
-40 to +70 C

Relative Humidity
Max 95%, non-condensing

Firmware Version
V4.8 or Higher Supported

Memory
Expandable via CompactFlash card

Operating Temperature Range
0 to +45 C

Siemens CU320-2 PN 6SL3040-1MA01-0AA0 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
2 Week

About Siemens CU320-2 PN 6SL3040-1MA01-0AA0

CU320-2 PN 6SL3040-1MA01-0AA0

SINAMICS CONTROL UNIT CU320-2 PN WITHOUT COMPACT FLASH CARD

Product related

Article number

6SL3040-1MA01-0AA0
Life cycle status

Active Product
Product Family

CU320-2 Control Unit
EAN

4042948660126
UPC

040892656169
Commodity Code

85371091

Versatile System Integration

The CU320-2 PN serves as a robust control unit for SINAMICS S120 multi-axis drive systems, offering flexible mounting (DIN rail or panel) and a comprehensive interface portfolio for smooth integration with various industrial protocols such as PROFIBUS, PROFINET IO, and Ethernet/IP.

Resilient Performance in Demanding Environments

Engineered for reliability, the CU320-2 PN operates efficiently within a temperature range of 0 to +45C, and can be stored between -40 and +70C. Its rugged design accommodates high humidity (up to 95% non-condensing) and altitudes up to 2000 meters, making it suitable for diverse operational settings.

Ease of Maintenance and Expansion

The device supports firmware updates via fieldbus, ensuring ongoing access to the latest features and security enhancements. Integrated diagnostics streamline troubleshooting, while expandable memory with CompactFlash provides scalability to suit evolving application requirements.

FAQ's of Siemens CU320-2 PN 6SL3040-1MA01-0AA0:

Q: How is the Siemens CU320-2 PN control unit mounted in an industrial setup?

A: The CU320-2 PN supports both DIN rail and panel mounting options, allowing flexible installation to match your control cabinet or system layout requirements.

Q: What communication protocols does the CU320-2 PN support for system integration?

A: This control unit offers connectivity for PROFIBUS, PROFINET IO, and Ethernet/IP via 2 x Ethernet RJ45 ports and 1 x PROFIBUS/MPI port, ensuring compatibility with a wide range of industrial networks.

Q: When should I consider using the CU320-2 PN for my drive system application?

A: The CU320-2 PN is ideal for applications requiring high-performance modular control and advanced diagnostics within the SINAMICS S120 multi-axis drive systems, especially when integration with major industrial Ethernet and fieldbus protocols is required.

Q: Where can the CU320-2 PN operate effectively in terms of environmental conditions?

A: It operates optimally at temperatures from 0 to +45C and can be stored between -40 and +70C. It is also designed for environments with up to 95% relative humidity (non-condensing) and altitudes up to 2000 meters above sea level.

Q: What are the process steps for updating the firmware on the CU320-2 PN?

A: Firmware updates can be performed via the fieldbus network, allowing remote or convenient on-site updates to keep the device secure and up-to-date without removing it from service.

Q: How can users benefit from the diagnostic features provided by the CU320-2 PN?

A: Integrated system and drive diagnostics enable quick identification of issues and reduces downtime. LED indicators offer visual status updates, simplifying maintenance and enhancing system reliability.

Q: What is the benefit of expandable memory in the CU320-2 PN control unit?

A: Expandable memory via CompactFlash card allows users to adapt storage capacity to changing project requirements, supporting flexible and scalable control system configurations.
