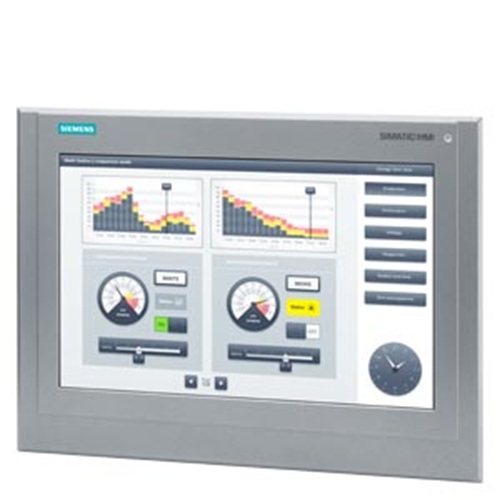

Siemens SIMATIC HMI TP1500 Comfort 6AV2124-0QC13-0AX0

Siemens SIMATIC HMI TP1500 Comfort 6AV2124-0QC13-0AX0 Specification

Way
Single

Thickness
74 mm (panel depth)

Protection Level
IP65 (front), IP20 (rear)

Rated Current
0.7 A (maximum input current)

Rated Operation Voltage
24 V DC

Connectivity Type
3 x Ethernet (RJ45), 2 x USB Type A, 1 x PROFINET

Cabinet Material
Aluminum/plastic housing

Base Material
Plastic

Protection Class
Class III (according to IEC 61140)

Rated Insulation Voltage
500 V

Cover Material
Aluminum front, Polycarbonate rear

Panel Type
Touch screen, Color TFT

Cooling System
Passive, fanless design

Features
Multi-touch, high resolution (1024 x 600), LED backlighting, integrated Web server, energy-saving, multi-language support

Control System
SIMATIC automation systems compatibility

Operating Voltage
24 V DC

Current Rating
0.7 A (at 24 V DC)

Components
SIMATIC HMI Panel, mounting accessories

Product Type
Touch Panel

Material
Industrial-grade plastic and aluminum front

Surface Finish
Matte / Anti-glare

Standard
IEC 61131, EN 61000

Surface Color
Grey

Rated Voltage
24 V DC

Frequency (MHz)
50 - 60 Hz

Maximum Output Current
Not applicable (HMI) / 0.7 A input current

Dimension (L*W*H)
410 mm x 272 mm x 74 mm

Application
Industrial automation and machine control

IP Rating
IP65 (front)

Display Type
15 TFT widescreen color display, 16 million colors

Language Support
Multilingual interface

Operating System
WinCC Comfort/Advanced compatible

Interface
Ethernet, 2x USB Host, SD card slot, 1x PROFIBUS, 1x PROFINET

Power Consumption
~25 W

Weight
Approx. 4.5 kg

Operating Temperature
0C to 50C

RAM
24 MB user memory (RAM)

Backlight Lifetime
Minimum 50,000 hours

Resolution
1024 x 600 pixels

Display Size
15 inch widescreen

Processor
ARM-based processor, 1 GHz

Mounting
Panel mounting

Configuration Software
TIA Portal

Mass Storage
256 MB Flash

Touch System
Analog resistive touch

Storage Temperature
-20C to 60C

Relative Humidity
10% to 90% (non-condensing)

Siemens SIMATIC HMI TP1500 Comfort 6AV2124-0QC13-0AX0 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
2 Week

About Siemens SIMATIC HMI TP1500 Comfort 6AV2124-0QC13-0AX0

6AV2124-0QC13-0AX0

SIMATIC HMI TP1500 Comfort Outdoor

SIMATIC HMI TP1500 Comfort Outdoor, Comfort Panel, Touch operation, 15" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0 (Microsoft Support included Security updates discontinued) configurable from WinCC Comfort V13 SP1, HSP

Intuitive Operation and Durable Design

The TP1500 Comfort Panel provides an intuitive user interface with multi-language support and a 15-inch color touchscreen. The matte, anti-glare finish enhances visibility, while the robust aluminum and polycarbonate casing with IP65 protection (front) ensures reliable operation in harsh industrial settings.

Seamless Connectivity and Integration

Flexible connectivity is a key feature, with interfaces including three Ethernet ports, USB, SD card slot, PROFIBUS, and PROFINET, making the panel highly integrable within complex automation architectures. The included Web server allows remote operation and easy monitoring.

Efficient Performance and Energy Savings

An ARM-based 1 GHz processor and LED backlighting provide strong performance and energy efficiency. The panel operates fanlessly, minimizing maintenance, while the TIA Portal software streamlines configuration for swift deployment in various industrial automation applications.

FAQ's of Siemens SIMATIC HMI TP1500 Comfort 6AV2124-0QC13-0AX0:

Q: How is the Siemens SIMATIC HMI TP1500 Comfort Panel primarily used?

A: This HMI panel is designed for industrial automation and machine control applications, providing operators with intuitive control, system monitoring, and process visualization on factory floors or in automation cabinets.

Q: What are the benefits of the analog resistive touch screen used in this model?

A: The analog resistive touchscreen enables precise interaction, even with gloved hands or styluses. It's well-suited for demanding industrial environments where consistent performance and operator flexibility are crucial.

Q: When should I choose this HMI panel for my automation project?

A: You should select the TP1500 Comfort Panel if your application requires a robust, high-resolution 15-inch display, seamless SIMATIC system compatibility, and advanced connectivity including Ethernet, USB, PROFIBUS, and PROFINET interfaces.

Q: Where can I mount and operate the TP1500 Comfort Panel?

A: Designed for panel mounting, this HMI is suitable for installation in industrial machinery or cabinet fronts. It operates reliably in environments with temperatures from 0C to 50C and humidity up to 90% (non-condensing).

Q: What is the process for configuring and integrating this HMI with control systems?

A: Configuration is accomplished using Siemens TIA Portal software. The panel can be integrated with SIMATIC automation systems via Ethernet, PROFIBUS, or PROFINET, enabling efficient project setup and communication with controllers.

Q: How does the panel contribute to increased operational efficiency?

A: The panel's high-resolution display, multi-touch capability, fast ARM processor, and energy-efficient design enable quick data visualization and responsive control, helping streamline operations while minimizing downtime and power consumption.
