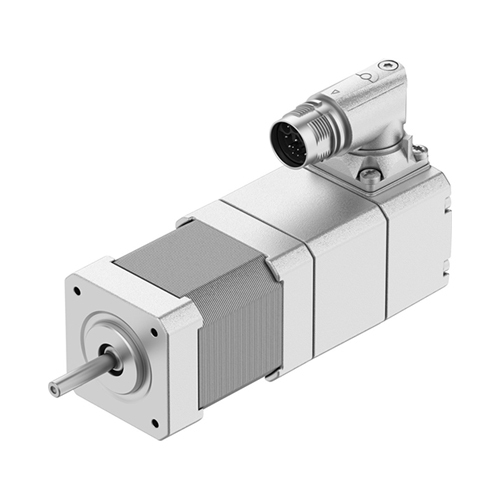

EMMT-AS-60-S-LS-RMB Servo Motor

The EMMT-AS-60-S-LS-RMB Servo Motor is a high-pressure device designed for reliable and efficient operation. With a voltage of 325v and frequency range of 50-60 Hz, this motor is perfect for a range of industrial applications. It boasts a fully enclosed design that makes it resistant to external factors that may cause damage to the internal components of the machine. This motor is an Electric Start type, making it easy to operate for users of any skill level. Its superior pressure capabilities allow it to perform even in challenging environments and give it an edge over standard industrial servo motors. This product is an excellent choice for those looking for an efficient and dependable solution for their industrial needs.

• Ambient temperature -15 C ... 40 C
• Note on ambient temperature Up to 80C with derating of -1.5% per degree Celsius
• Max. installation height 4000 m
• Note on max. installation height As of 1,000 m: only with derating of -1.0% per 100 m
• Storage temperature -20 C ... 70 C
• Relative air humidity 0 - 90%
• Conforms to standard IEC 60034
• Temperature class as per EN 60034-1 F
• Max. winding temperature 155 C
• Rating class as per EN 60034-1 S1
• Temperature monitoring Digital motor temperature transmission via EnDat 2.2
• Motor type to EN 60034-7 IM B5 IM V1 IM V3
• Mounting position optional
• Degree of protection IP40
• Note on degree of protection IP40 for motor shaft without rotary shaft seal IP65 for motor shaft with rotary shaft seal IP67 for motor housing including connection components
• Concentricity, coaxiality, axial runout to DIN SPEC 42955 N
• Balance quality G 2.5
• Detent torque <1.0% of peak torque
• Bearing lifetime under nominal conditions 20000 h
• Interface code, motor out 60P
• Electrical connection 1, connection type Hybrid plug
• Electrical connection 1, connector system M23x1
• Electrical connection 1, number of connections/cores 15
• Electrical connection 1, connection pattern 00995913
• Pollution degree 2
• Note on materials RoHS-compliant
• Corrosion resistance class CRC 0 - No corrosion stress
• LABS (PWIS) conformity VDMA24364 zone III
• Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Approval RCM trademark c UL us - Recognized (OL)
• CE mark (see declaration of conformity) To EU EMC Directive To EU Low Voltage Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity) To UK instructions for EMC To UK RoHS instructions To UK regulations for electrical equipment
• Certificate issuing authority UL E342973
• Nominal operating voltage DC 325 V
• Type of winding switch Star inside
• Number of pole pairs 5
• Standstill torque 0.66 Nm
• Nominal torque 0.6 Nm
• Peak torque 1.6 Nm
• Nominal rotary speed 3000 rpm
• Max. rotational speed 7100 rpm
• Max. mechanical speed 16000 rpm
• Angular acceleration 100000 rad/s
• Nominal power rating of motor 190 W
• Continuous stall current 1.6 A
• Nominal motor current 1.4 A
• Peak current 5.4 A
• Motor constant 0.41 Nm/A
• Standstill torque constant 0.49 Nm/A
• Voltage constant, phase-to-phase 29.9 mVmin
• Phase-phase winding resistance 11.7 Ohm
• Phase-phase winding inductance 38 mH
• Winding longitudinal inductivity Ld (phase) 15.5 mH
• Winding cross inductivity Lq (phase) 19 mH
• Electric time constant 2.1 ms
• Thermal time constant 41 min
• Thermal resistance 1.5 K/W
• Measuring flange 250 x 250 x 15 mm, steel
• Total mass moment of inertia of output 0.257 kgcm
• Product weight 1500 g
• Permissible axial shaft load 70 N
• Permissible radial shaft load 350 N
• Rotor position sensor Absolute multi-turn encoder
• rotor position sensor, manufacturer designation EQI 1131
• rotor position sensor, absolute detectable revolutions 4096
• Rotor position encoder interface EnDat 22
• Rotor position sensor, encoder measuring principle Inductive
• rotor position sensor, DC operating voltage 5 V
• rotor position sensor, DC operating voltage range 3.6 V ... 14 V
• rotor position sensor, position values per revolution 524288
• Rotor position transducer resolution 19 bit
• rotor position sensor, system accuracy of angle measurement -120 arcsec ... 120 arcsec
• Brake holding torque 2.5 Nm
• Operating voltage DC for brake 24 V
• Brake current consumption 0.46 A
• Power consumption, brake 11 W
• Brake coil resistance 52.4 Ohm
• Brake coil inductivity 700 mH
• Brake separation time 35 ms
• Brake closing time 10 ms
• DC brake response delay 2 ms
• Max. brake no-load speed 10000 rpm
• Max. friction per braking process 5600 J
• Number of emergency stops per hour 1
• Total brake friction 615 kJ
• Mass moment of inertia of brake 0.074 kgcm
• Switching cycles holding brake 10 million idle actuations (without friction work!)
• Mean time to failure (MTTF), subcomponent 190 years, rotor position sensor
