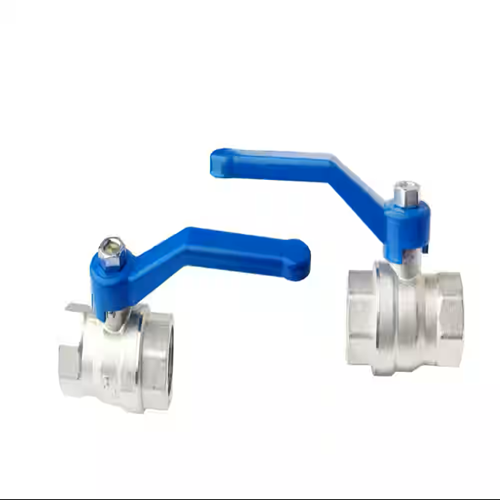

Kitz Ball Valve

Kitz Ball Valve Specification

Connection
Flanged & Threaded

Structure
Control

Material
Stainless Steel

Size
Standard Sizes

Media
Water

Color
Silver

Finish
Polished & Coated

Kitz Ball Valve Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Against Delivery (CAD), Cash Advance (CA), Cash in Advance (CID), Telegraphic Transfer (T/T)

Supply Ability
1000 Pieces Per Month

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
Standard Packaging

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About Kitz Ball Valve

Low fluid resistance

Since the flow passage of the ball valve is the same cylindrical shape as that of the pipe, the flow is smooth, and it is a valve with extremely small fluid resistance among various valves. (Full bore type ball valve)

Easy automation with actuator installation

The ball valve is suitable for automation because it is fully opened and fully closed with a 90 rotation. We have standardized actuators for both pneumatic type and electric type, and we have made an appropriate and efficient response to the nominal valve diameter, operating conditions, etc.

High sealing performance due to soft seal structure

The valve has a plastic sheet on the primary side (inlet) and secondary side (outlet) of the fluid around the ball. When closing, the ball is pushed against the fluid pressure, and the ball acts as a sealing force against the secondary side sheet. (Floating type ball valve)

Valve shape is compact

Ball valves are nearly spherical in shape as compared with general sluice valves and ball valves, and their height, weight and compactness compared with those of the same nominal diameter make them also small in stress applied to piping, making them suitable for mounting in limited narrow spaces.

Open/close operation is 90 rotation type and simple

For general gate valves and ball valves, the handle must be rotated back and forth 10 times to fully close the valve from fully open, but the ball valve only makes a quarter turn (90).

Easy maintenance

The structure of the ball valve is relatively simple, and it is easy to disassemble, assemble and maintain because of the small number of parts.
